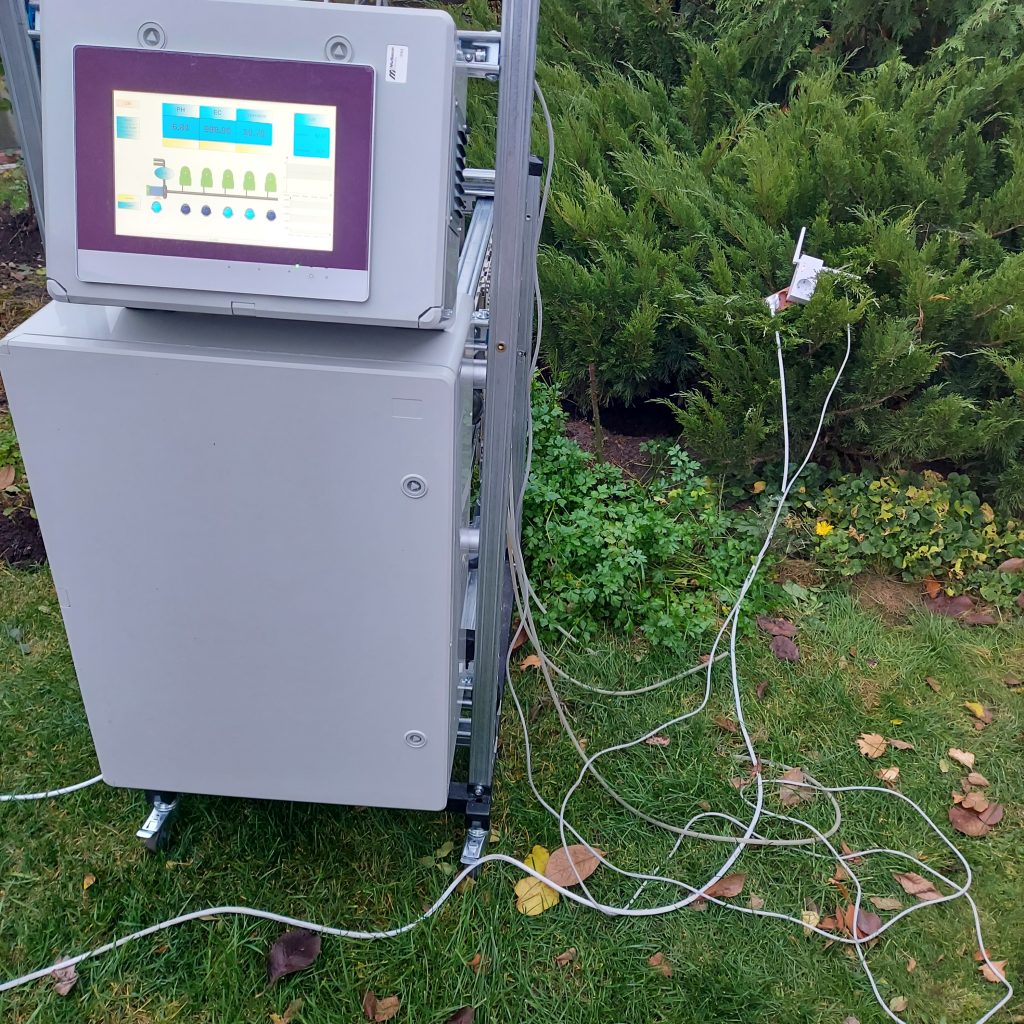

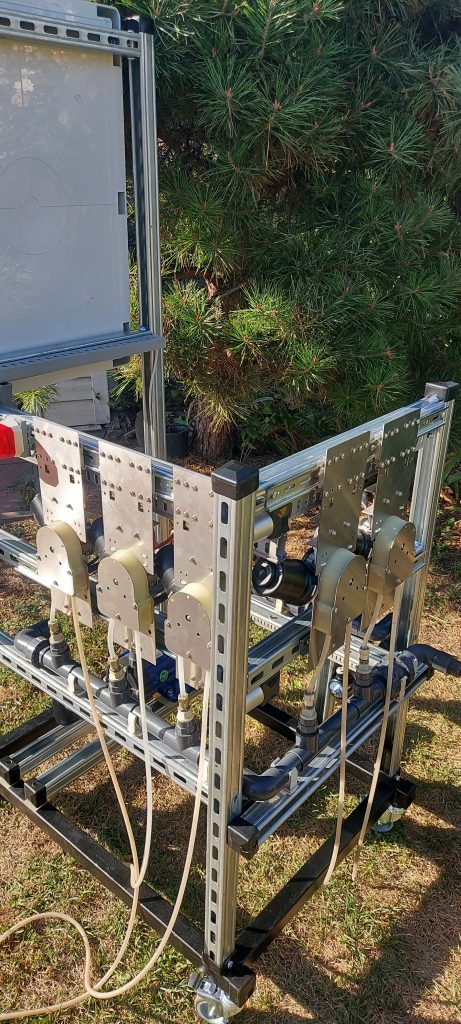

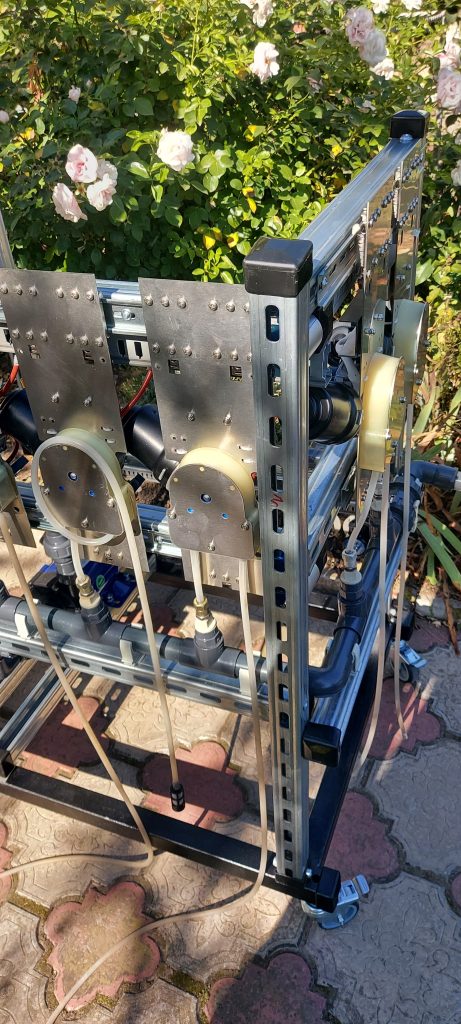

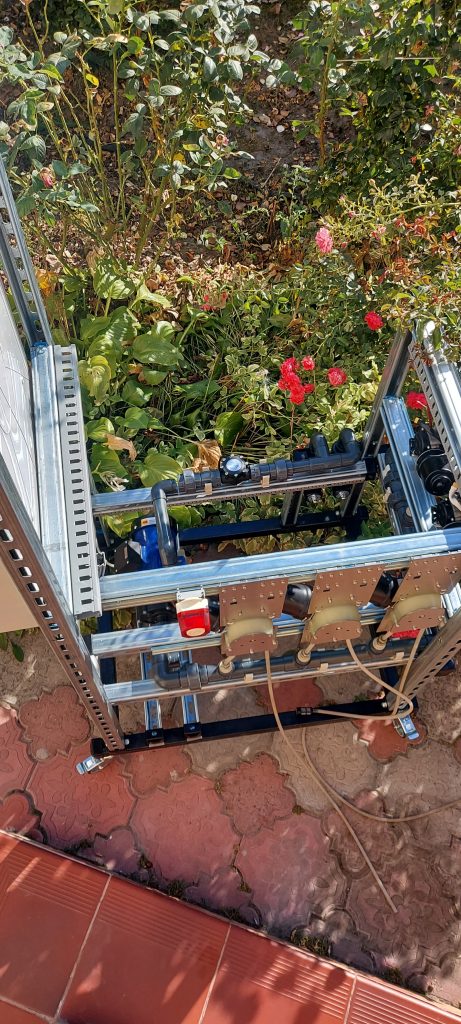

Our team includes highly qualified specialists with many years of experience in the chemical industry, as well as equipment controlled by Wago, Moxa, Lenze and other controllers. The last of the developments is a plant for preparing a solution for watering plants.In the process of creating the installation, we faced a number of technological challenges, in particular, the search for materials for the manufacture of structures, because the main condition was the use of material (for supply pipes) resistant to alkalis and acids. We managed to achieve this. In the photo below, we are proud to show you our prototype. We will be glad to cooperate.

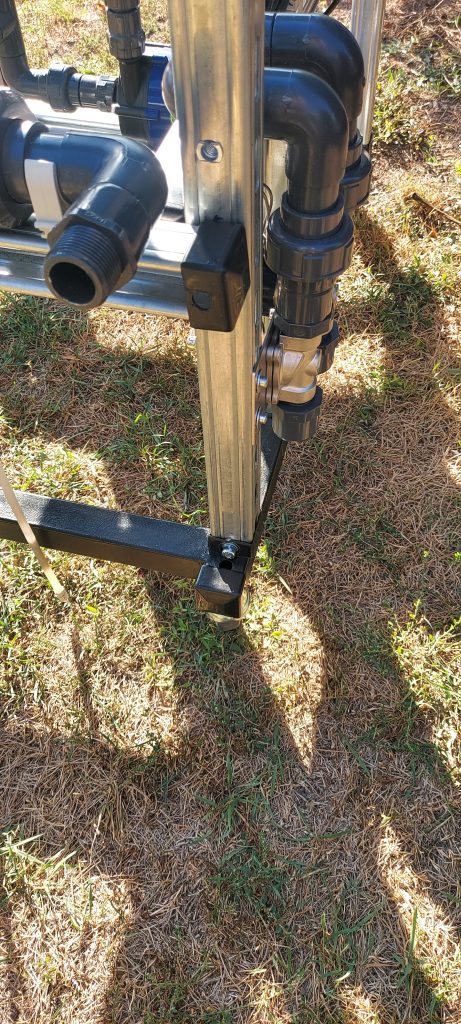

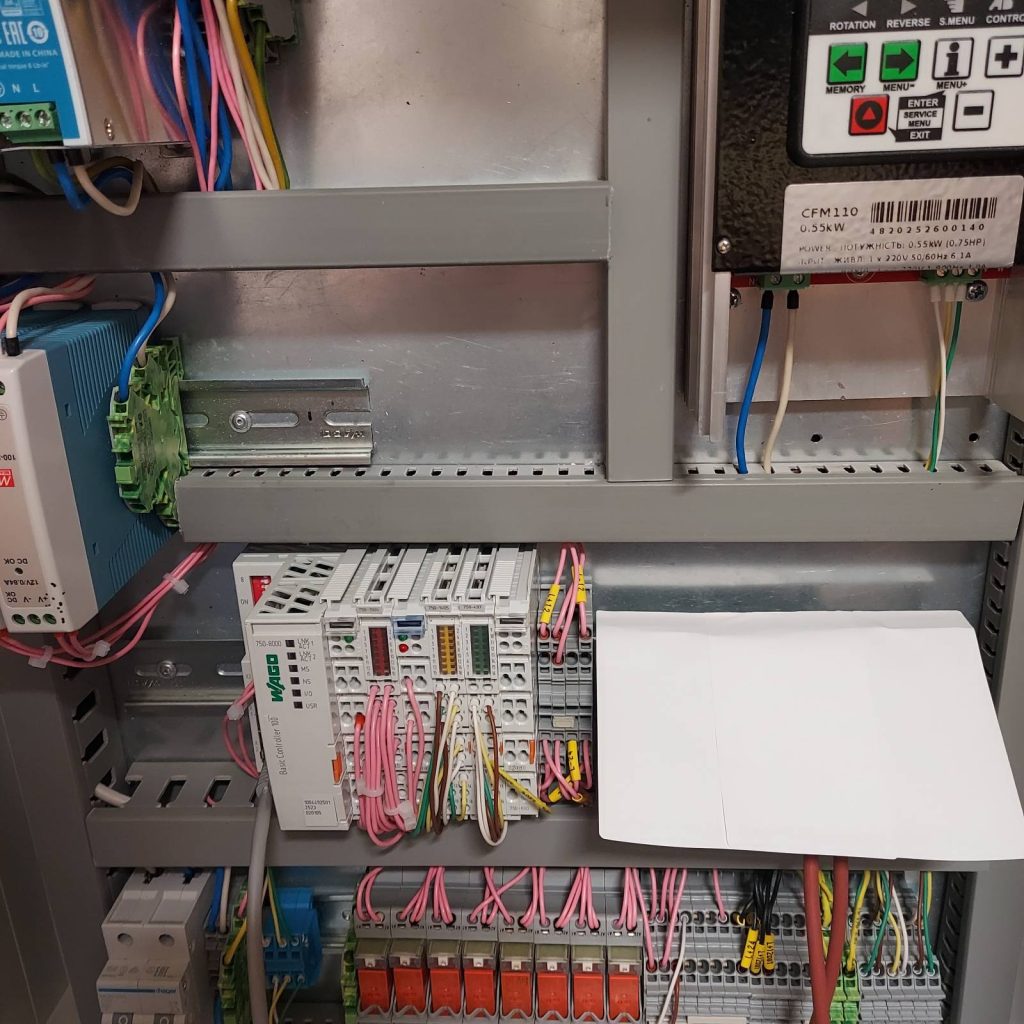

We use modern materials for long-term operation of the installation. Estimated steel bed. Controller of production “WAGO”, Germany. Motors manufactured by “LSA”, Slovakia. Polyurethane – “DuPont”, France. Silicone – “Wacker”, Germany. Pipeline – “Pimta”, Turkey.

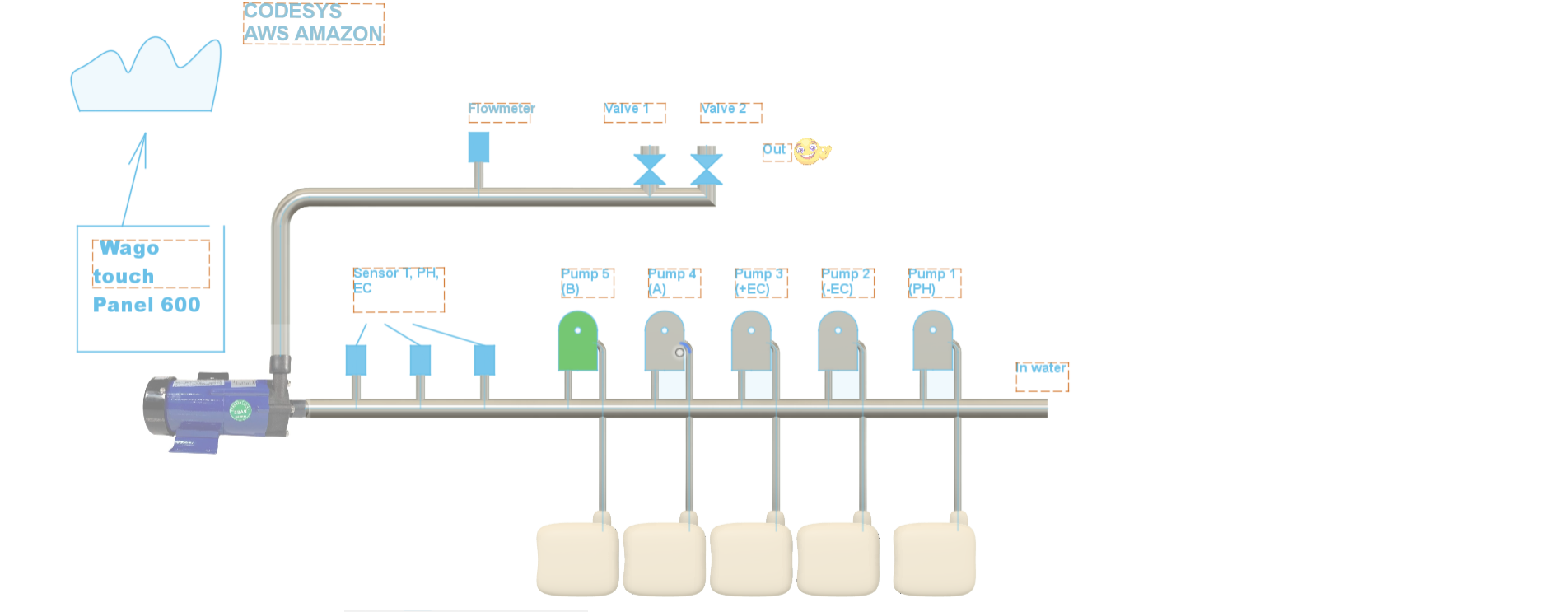

Schematic diagram of installation

Technical characteristics of the installation

Power – 0.2-6 cubic meters per hour (adjustable)

The number of metering pumps is 5 units. (adjustable)

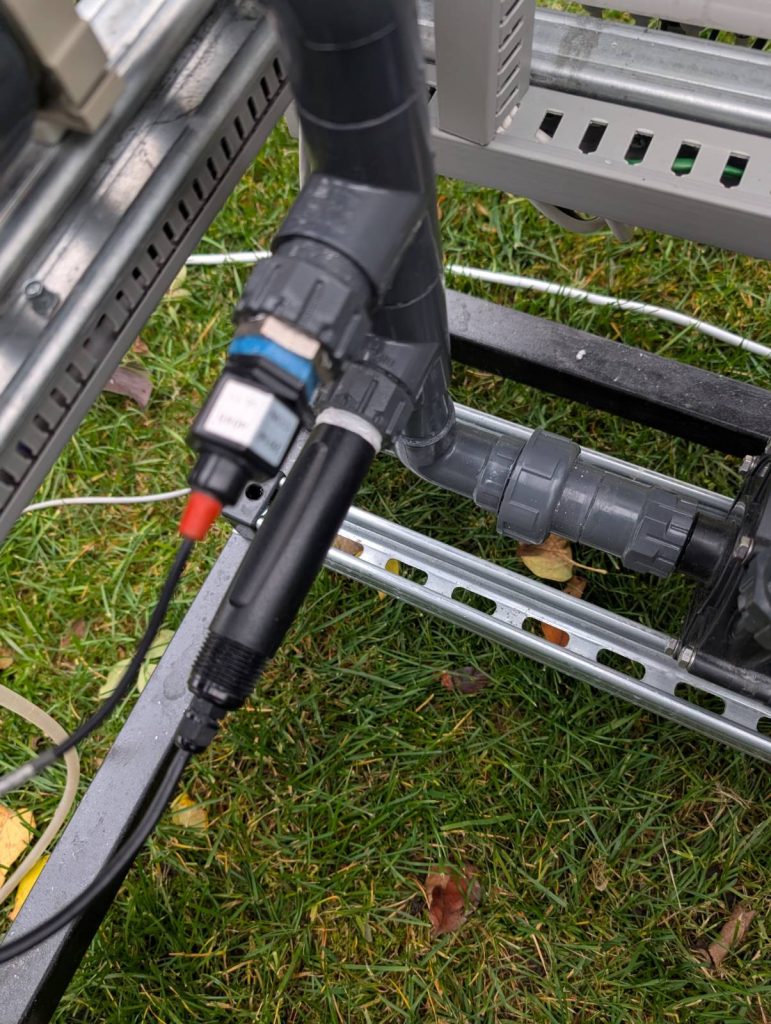

Regulation of PH, EC – by the value or volume of the solution

The number of output branches is 2 units. (adjustable)

Mode of operation – by time, by volume of solution

Alarm Manager – yes

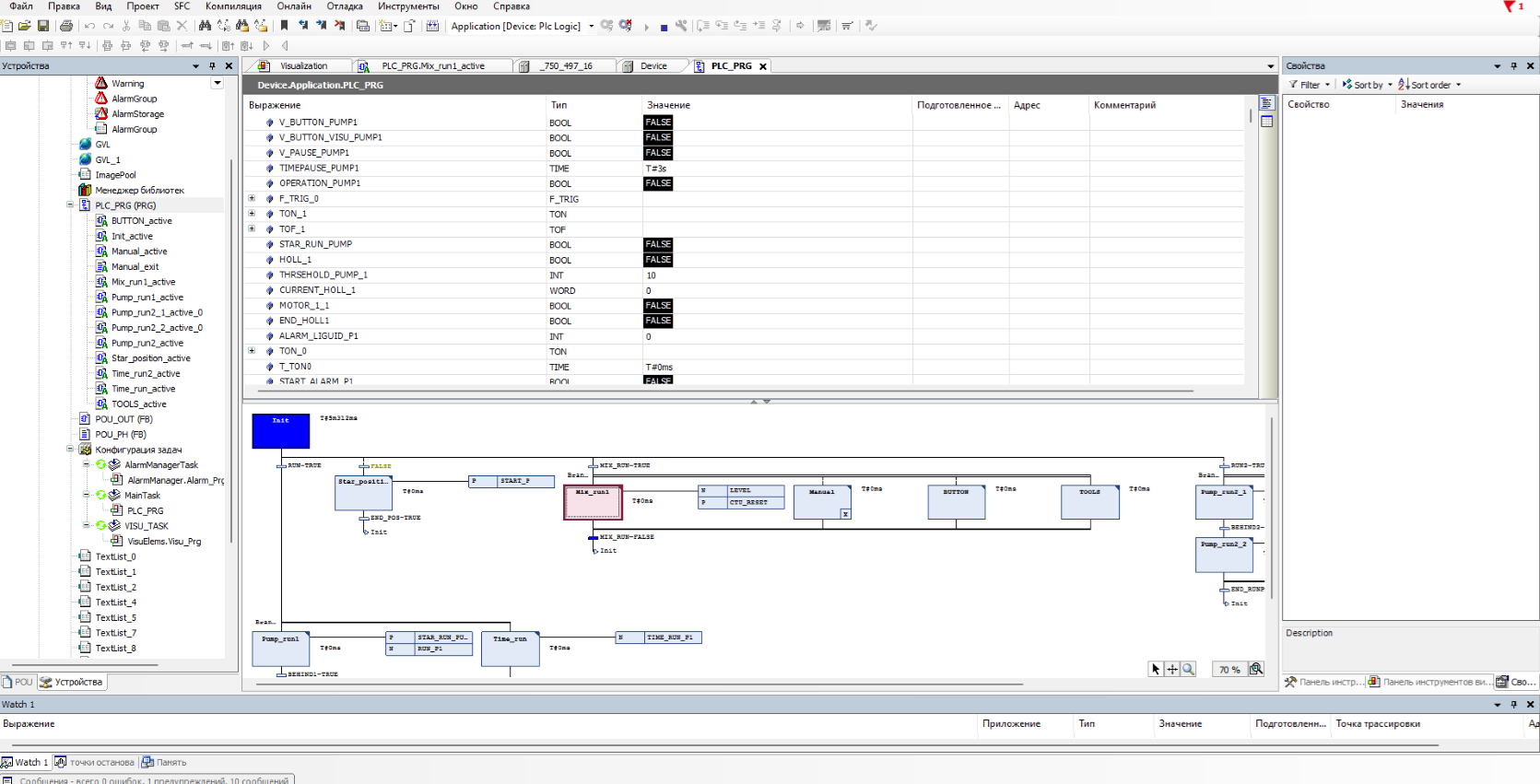

Software program– CODESYS

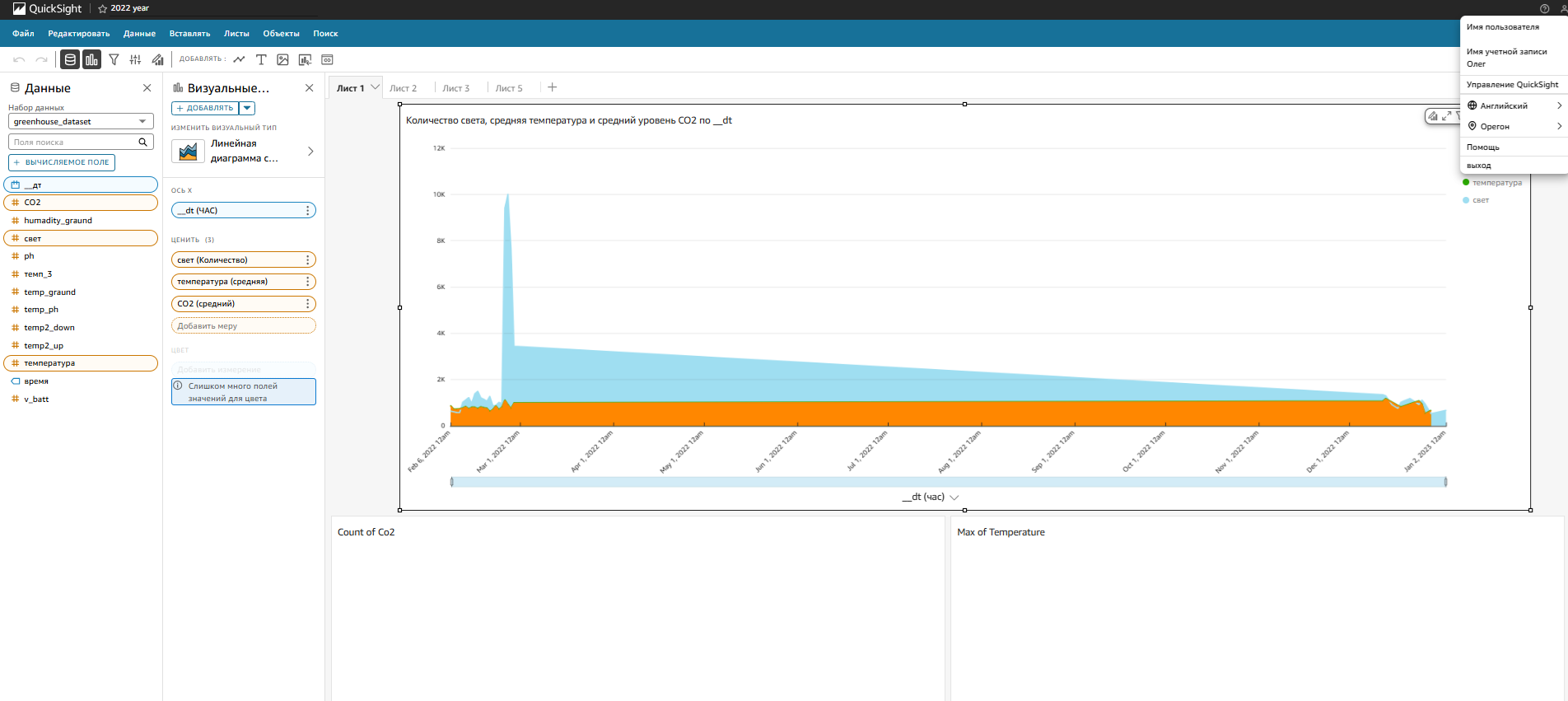

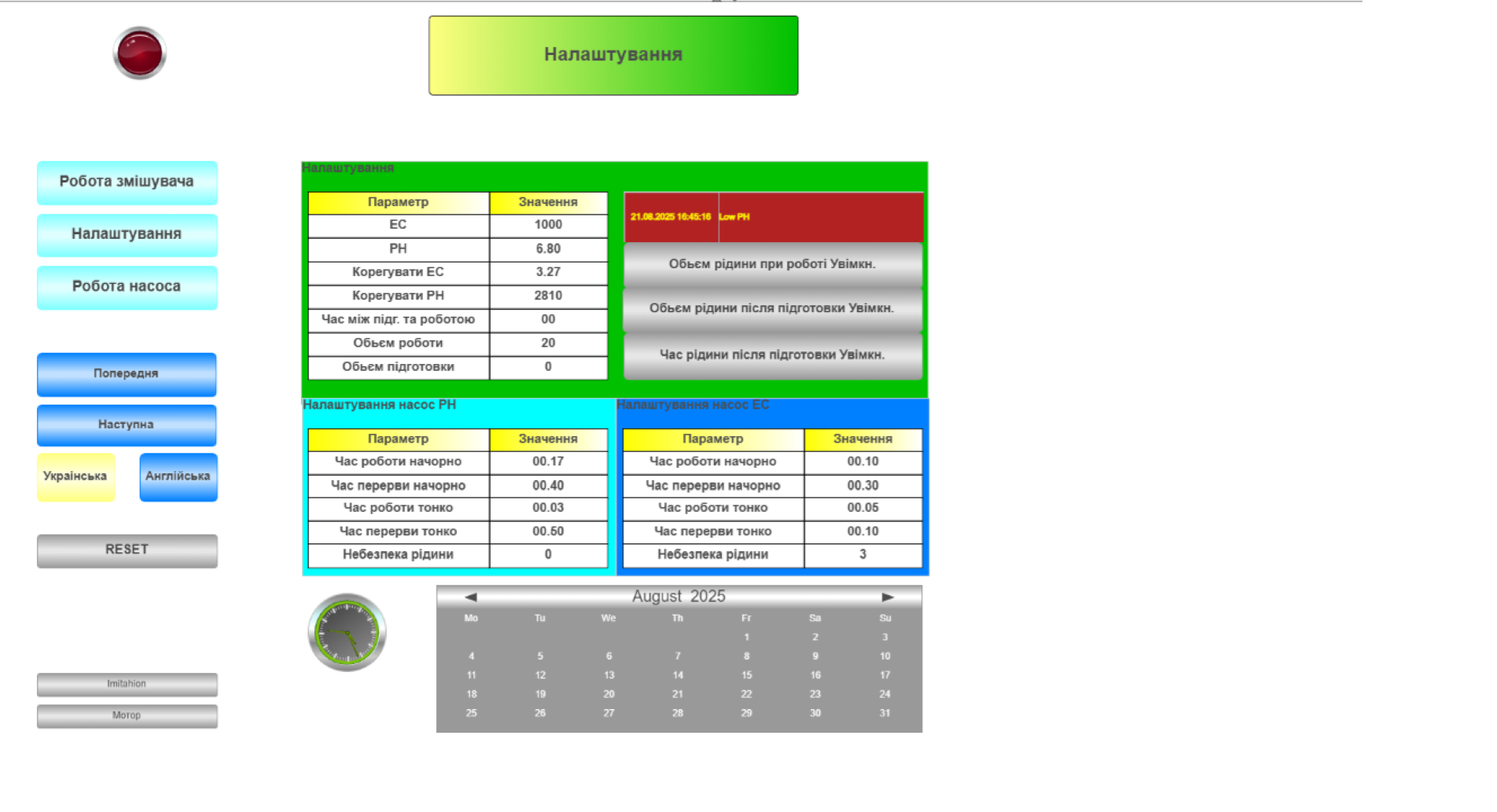

Remote visualization – CODESYS Automation Server, Amazon QuickSight

Storage for writing values – S3 Glacier

Supply voltage – 220 v. (perhaps 24 v.)

The installed power is 370 watts

Size – 610mm. * 750mm. * 1750mm.

Additional options – temperature, humidity, CO2 air measurement

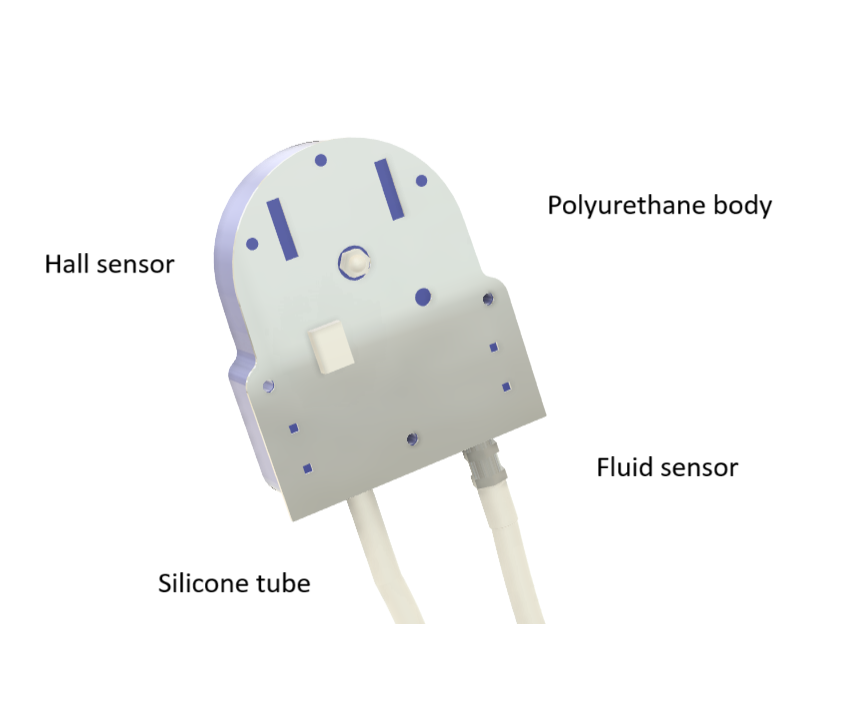

Schematic diagram of the dosing pump

Technical characteristics of the dosing pump

Power – 0.095 cubic meters/hour

Type – peristaltic, resistant to alkalis and acids

The minimum dose is 2.5 ml.

Dosage error – 2%

Mode of operation – by time, by volume of solution

Supply voltage -12 v.

Installed power – 20 watts

The presence of a liquid sensor – yes

Presence of dose sensor – yes

Fastening on the DIN rail
